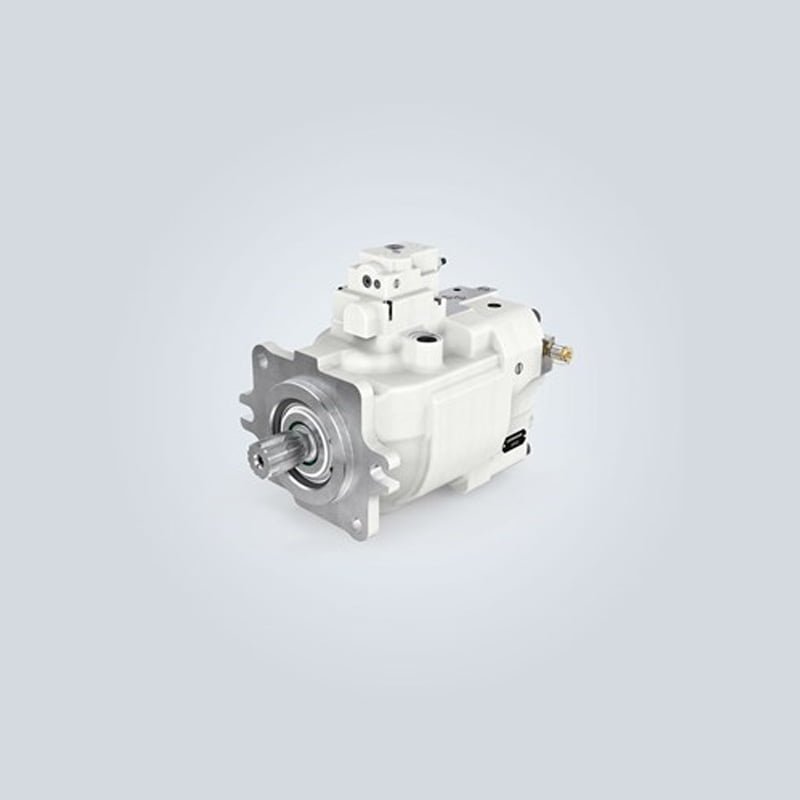

Liebherr DPVO Axial Piston Hydraulic Pump
Liebherr DPVO Axial Piston Hydraulic Pump
RoteX Hydraulic can supply all sizes of Liebherr DPVO Axial Piston Hydraulic Pump including their complete range. Our technicians have the right knowledge and expertise to tackle any problem it might have, as a leading Liebherr DPVO Axial Piston Hydraulic Pump repair service provider, we will make quick fixes without compromising on quality.
- Axial Piston Pumps, Open Circuit, Variable Displacement Pump
- Series DPVO, DPVO500
- Model Sizes : 108 / 140 / 165 / 165 impeller / 215 / 215 impeller / 550 impeller.
- Nominal Pressure 380 / 400 bar 5,802 psi
- Maximum Pressure 420 / 450 bar 6,526.70 psi
Share Product :
- Description
- Technical Specifications
- Product Model
- Data Link
Liebherr DPVO Axial Piston Hydraulic Pumps are designed as swashplates for open circuits. They are variable displacement types of pumps, available in nominal sizes ranging from 108 to 215. 5,802 psi (400 bar) is he nominal pressure of the pumps and the maximum pressure is 6,527 psi (450 bar) absolute. Liebherr has designed these pumps for high pressure applications with inverted piston design. These pump features 100 percent through-drive capability with a 22° swivel angle and capacity of high pressure. Additionally, these can be combined with all common controls. The variable displacement pump is also available with impeller In nominal sizes 165 and 215. This helps to achieve a higher displacement and a higher self-suction speed.
Model:108 / 140 / 165 / 165 impeller / 215 / 215 impeller / 550 impeller.
